Gate opener motor power 80W


Gate opener motor power 80W


Gate opener motor power 80W
This gate opener is suitable for both residential and commercial purposes. Made of selected materials, the device is carefully designed to ensure both durability and performance.

Features
Soft start and soft stop.
In case of power failure, emergency launch key is used.
Double / single gate operating mode.
Adjustable opening / closing interval between track and gate.
Built-in adjustable auto-close (0-99 seconds).
Built in max. engine running time (MRT) adjustable to protect multiple safety (1-50 seconds).
The digital display shows the current situation and setting menu.
Reliable electromagnetism limit for easy adjustment.
Can be equipped with a wide range of accessories.

Click here to see the flim

Specification
Input: AC220V, 50Hz / 110V.
Motor voltage: 24VDC.
Power: 80W / arm.
Current: 3A.
Environmental condition: -30°C~ + 50°C.
Actuator walking speed: 16 mm/s.
Actuator travel: 385mm.
Maximun weight of each gate: 300kg.
Maximum width of gravel: 3m.
Enclosure class: IP44.

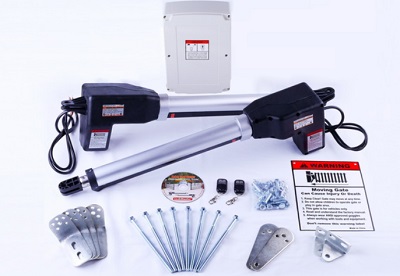

Included: Control box, Installation instructions, Warning plate (4 pcs), Remote control, Actuator (2 pcs), Installation tool, CD-ROM.




  • Gate opener motor power 80W
    Art. nr.
    LM902
    Gate opener motor power 80W
    419.00 EUR
    419.00 EUR
    EUR
