Swingfog SN 81 Pump Spraying equipment


Swingfog SN 81 Pump Spraying equipment


Swingfog SN 81 / SN 81 Pump

Swingfog fogging machines run with regular grade gasoline (petrol) in accordance with the Swingfire principle. A fuel/air mixture is ignited in the combustion chamber and the deflagrations oscillate a column of gas in the resonator pipe between 80 and 110 times per second (depending on the type of machine). At the end of the resonator, the fogging mixture is 4-5 msec injected into the air stream emerging at high velocity, and is dispersed into fine aerosol droplets, which are distributed into an extensive, dense fog. Fuel and fogging mixture are conveyed by a small positive pressure in the tanks. The system has, with the exception of diaphragms, no moving parts and, therefore, practically no wear.

Swingfog SN 81 / SN 81 Pump

  • Stationary machines, available with two types of chemical tank made of stainless steel or polyethylene.
  • The fuel tank is made of stainless steel.
  • The Swingfog SN 81 Pump is equipped with an electric stainless steel feeding pump to draw the fogging mixture from a separate tank.
  • The SN 81 Pump is supplied with a rechargeable battery to drive the chemical pump and a battery charger.

Power supply – Power consumption

Electrical energy is only required to start the machines, it is not required for ignition during operation. The battery capacity is selected to match the power consumption of the magnetic valve of the automatic cut-off device and the fog on/off functions of Swingfog SN 81 Pump, as well as for the operation of the electrically driven feeding pump for the fogging mixture of Swingfog SN 81 Pump.

Fuel chamber / power 18.7 kW - 25.4 HP - 16100 kcal/h
Fuel consumption 2 liter/h
Chemical Tank 6.5 liter
Consumption dosage ∅0.7 10l/h, ∅0.8 14l/h, ∅0.9 17.5l/h, (∅1.0 20.5l/h ingår),
∅1.1 23.5l/h, ∅1.2 27l/h, ∅1.4 32l/h, ∅1.7 42l/h
Noise level 95 dB (A) with silencer 90 dB (A)
Overpressure in the fuel tank about 0.08 bar
Measured approx 130x29x32
Empty weight 7.9 Kg

Accessories
Typical droplet distribution generated by Swingfog
Our advantage: Using water-based fogging mixtures, together with the high performance fogging tube, an excellent droplet spectrum is achieved, which is usually only possible with oil-based mixtures.

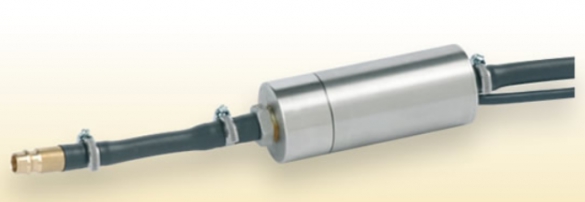

Electrically driven feeding pump, made of stainless steel for Swingfog SN 81 Pump. The pump can be applied as a submerged pump or can be connected to a quick-release coupling to draw the fogging mixture out of a separate container.The Swingfog SN 81 Pump is supplied with a rechargeable 12 V / 12 Ah battery and a battery charger. The pump can be driven by the battery or by the public power supply by connecting the battery charger to the power source and he battery.

Standard fogging tube for oil-based fogging mixtures


High performance fogging tube for water-based fogging mixtures (optional accessory). Using this device for the application of water-based fogging mixtures, an excellent droplet spectrum is generated, which is almost identical to that of oil-based mixtures. The high performance fogging tube must only be used for water-based fogging mixtures.

Automatic cut-off device for the fogging mixture
by means of an electro-magnetic valve. Standard equipment for all models of Swingfog SN 101 and of Swingfog SN 81 Pump.

Automatic, mechanically acting cut-off device for the fogging mixture.

Standard equipment supplied with every Swingfog machine
Spraying mixture funnel with strainer.
Fuel funnel with strainer.
Bag with tool kit and cleaning equipment.
Set of spares, containing all important gaskets, O-rings and diaphragms.
Set of dosage nozzles.
Ear protection (2 sets).
Carrying strap (for SN 50 and SN 81 types only).
Instruction manual with operation, maintenance and repair instructions.


Application

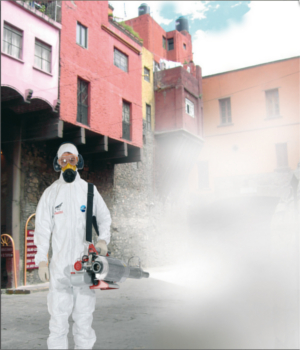

  • Pest control in a grain store.
  • Fog application in a greenhouse.
  • Vector control.
  • Plant protection in plantations.
  • Swingfog SN 81 Pump Spraying equipment
    Art. nr.
    MOTSN80
    Swingfog SN 81 Pump Spraying equipment
